• A new lightweight DeVilbiss spray gun developed for busy professional painters needing the ultimate in quality finishes.
• Range of three advanced technology air caps (one HVLP and two High Efficiency) for optimum application performance with the latest solvent and waterborne coatings.
• All new ergonomic gun body design with even better fit and balance for comfort and control.
• Three high efficiency fluid tips provide superb versatility across a range of climatic conditions and viscosities.
• Coaxial, low kick air valve design gives smoother feel for even greater air and paint control for ease of fade-outs and blend-ins.
PROL
TE10
B
13
model
aircap
base
fluid tip
HV30 HVLP
Air Cap
TE10 High Efficiency
Air Cap
TE20 High Efficiency
Air Cap
Specification
Air Inlet Pressure
2.0 bar (29psi) for TE Caps
1.75 bar (25 psi) for HV Cap
When ordering please specify the air cap of your choice (HV30, TE10, TE20), the tip size of your choice (12, 13 or 14) and the paint type marking required on your gun B=BASE, C=CLEAR.
Part No Examples
Description
PROL-TE10C-13
GTi Pro LITE kit with TE10 High Efficiency air cap, #13 fluid tip, marked as "Clear"
PROL-HV30B-D-12
Digital GTi Pro LITE kit with HV30 High Efficiency air cap, #12 fluid tip, marked as "Base"
Kit includes GTI PRO LITE DEVILBISS gun, gravity cup, paint filter, brush, torx key, set of 4 identification rings and combination spanner
Part No
Description
PRO-102-HV30-K
HV30 HVLP Air Cap and retaining ring
PRO-102-TE10-K
TE10 High Efficiency Air Cap and retaining ring
PRO-102-TE20-K
TE20 High Efficiency Air Cap and retaining ring
PROL-455-****-**
Air cap, fluid tip and needle kit

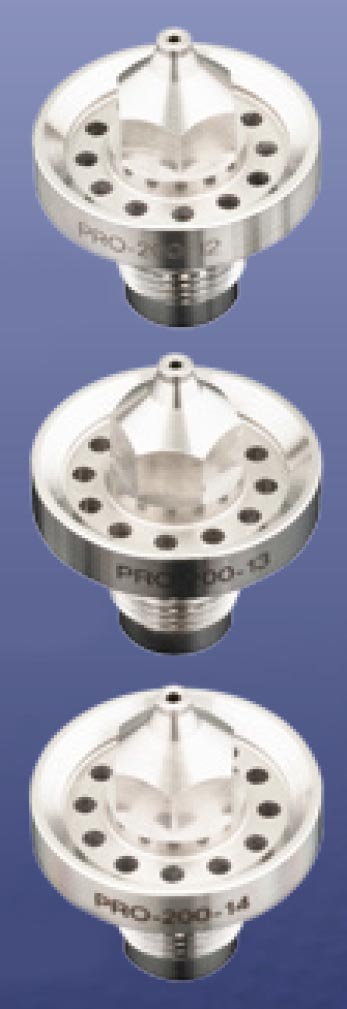

PRO-200-**-K
Fluid Nozzle Size Numbers 12, 13 & 14
PRO-301-K
Pro LITE Fluid Needle

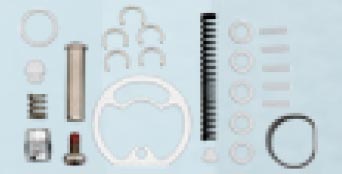

PRO-470

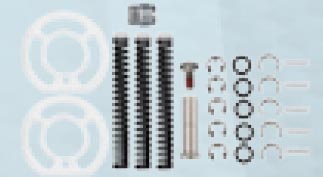

Spray Gun Service/Repair Kit
SN-406

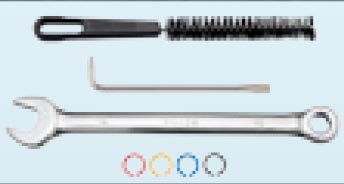

Gun wrench, Torx & flat back screwdriver, cleaning brush and colour ID rings
DGIPRO-502-BAR
Digital gauge for air inlet fitting - Reads in bars
DGIPRO-504-BAR-K
Digital gauge for spreader valve assembly for GTi Pro LITE - reads in bars
MPV-60-K3
Pack of three male quick detach uni swivel - fits to gun air inlet
HAF-507-K12
Lightweight in-line air filter (pack of 12).
4900-5-1-K3
Pack of three cleaning brushes
KGP-5-K5
Pack of 5 gravity cup filters for GFC cups
COMPLIANT SUCTION & PRESSURE FEED SPRAY GUNS
• The new lightweight gun but redesigned for suction or pressure feed duty.
• All new ergonomic gun body design with even better fit and balance for comfort and control.
• A range of pressure & suction nozzle sizes for varying viscosities and control preferences.
• Four compliant air cap choices to suit all materials and coatings.
• Utilises new coaxial air valve design for ultra-smooth triggering and control.
• Renowned DeVilbiss atomisation quality and even paint distribution.
• Faster, easier maintenance from user-friendly fittings and adjustments.
• Rugged drop forged body with the new tough, durable "Quick Clean" coating.
When ordering please specify the air cap of your choice and the tip size of your choice.
Part NoExamples
Description
PROSL-TE10-16
Suction gun & cup kit with TE10 High Efficiency air cap & #16 fluid tip
PROPL-TE40-10
Pressure gun kit with TE40 High Efficiency air cap & #10 fluid tip
GTI Pro LITE kits include: suction cup with filter (suction kits only), cleaning brush, torx key, set of 4 identification rings and combination spanner
Gun wrench, Torx & flat back screwdriver, cleaning brush and colour ID rings
DGIPRO-502-BAR
Digital gauge for air inlet fitting - Reads in bars
MPV-60-K3
Pack of three male quick detach uni swivel - fits to gun air inlet
HAF-507-K12
Lightweight in-line air filter (pack of 12).
4900-5-1-K3
Pack of three cleaning brushes
VSA-512
Strainer Assembly
It’s all part of the service...
We’ve re-written the book when it comes to professional automotive ref inish spray guns - a lightweight gun that delivers heavyweight performance
• Precision engineered using lightweight and durable alloy components for a tough spray gun that is 25% lighter than the GTi Pro Digital.
• Enhanced ergonomics combined with the GTi Pro’s legendary fit and feel ensure incredible handling and balance.
• A coaxial linear air valve eliminates the need for separate air and fluid control valves for a smooth, kick-free trigger action, easy cleaning and maintenance.
• Three advanced atomisation technology air caps for perfect paint performance in all climatic conditions.
Regular cleaning and careful maintenance is the key to ensuring maximum performance from your spray gun and we’ve built the GTI PRO LITE DEVILBISS so that both these essential tasks are quicker and easier than ever.The GTI comes with its own high quality chrome plated combination spanner and a specially made Torx/flat blade driver for the trigger and needle packing. With these two tools, you can completely strip and reassemble the gun, if necessary. The Torx driver fits the trigger retaining screw and just flip the tool over to remove the self-adjusting needle packing, while the combination spanner fits all the hex fittings on the gun. It really is that simple.
Removal and replacement of the controls is quick and easy too, thanks to the new spring arrangements and easy start threads.Inside, the fluid passages have been completely re-designed to be shallow angled, with no obstructions, and are therefore extremely free flowing. With the air separation chamber removed, the front end of the gun is totally accessible for thorough cleaning so no more surprises with yesterday’s colour arriving a day late!
No more juggling with two screwdrivers - the Torx driver makes trigger removal simple.
Clear laser marking of your base andclear guns helps ensure you use the right gun, with the right material and the correct gun cleaner!
Removing the air separator
and seal provides unrestricted
access to the front end for easy cleaning.

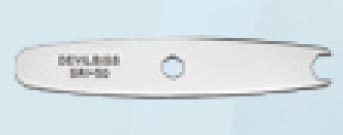

The high quality combination
spanner removes the fluid tip and hex fittings without
damaging the components.

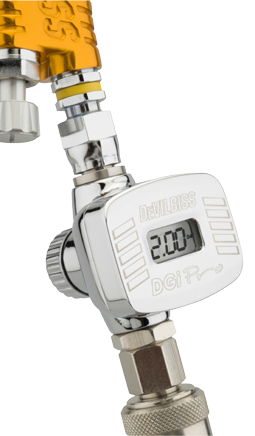

As part of the i-system, the DeVilbiss DGi Pro digital pressure gauge complements the GTI PRO LITE perfectly and, together with its new smooth, accurate controls, provides the professional automotive refinisher with the accuracy and precision to produce perfect, repeatable colour matches and high quality finishes first time, every time.
GTI PRO LITE Refinishers Kits
The GTI PRO LITE gravity feed spray gun is only available as a complete ready-to-spray refinishers kit. The boxed kit includes the complete burgundy anodized gun, gravity cup with paint filter, set of four coloured identification rings, Torx driver/screwdriver, cleaning brush, combination spanner and instruction/spare parts manual. When ordering please specify the air cap of your choice (HV30, TE10 or TE20), the tip size of your choice (12,13 or 14) and the paint type marking required on your gun B = BASE, C = CLEAR.
Specifications
Cup Capacity
560 mls
Weight (gun only)
446 gms
Weight (gun & cup)
629 gms
Weight (gun & DeKup)
606 gms
Air Cap
Plated Brass
Air Cap Retaining Ring
Clear Anodised aluminium
Fluid Tips
Stainless Steel
Fluid Needle
Stainless Steel
Air Inlet Thread
1/4” Universal
Gun Model
Air Cap
Atomisation Technology
Air Flow* l/min
Fluid Flow g/m
Pattern Height mm
GTi Pro LITE
TE10
High Efficiency
270 (9.5 cfm)
160 - 190
290 - 310mm
GTi Pro LITE
TE20
High Efficiency
360 (12.7 cfm)
170 - 200
285 - 300mm
GTi Pro LITE
HV30
HVLP
460 (16.3 cfm)
160 - 190
300 - 325mm
1 - Pack up your troubles We’ve said goodbye to the traditional needle packing and replaced it with a self-adjusting system that is self-sealing and keeps the trigger action smoother than ever

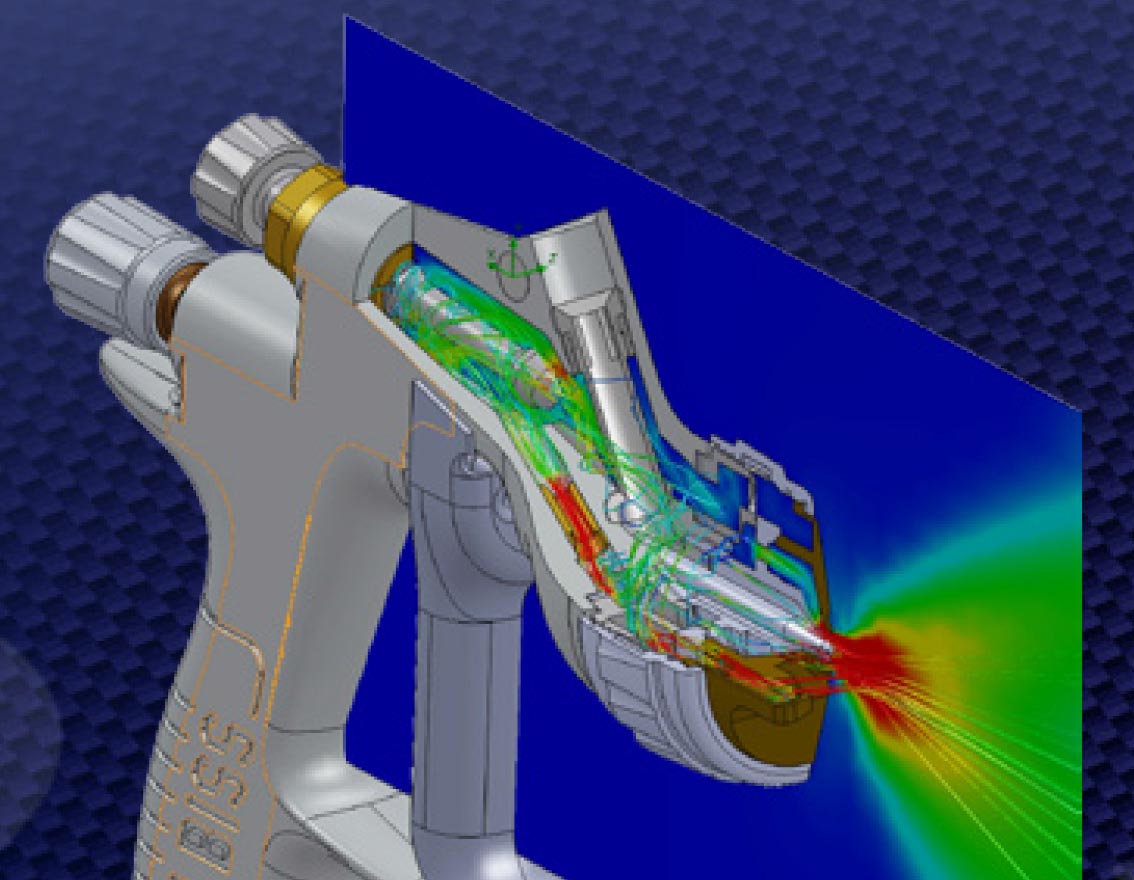

2 - Intelligent atomisation The DeVilbiss R&D team has developed three high performance air caps using world leading computational fluid dynamics technology to provide intelligent atomisation
that provides a flexible atomisation platform to help ensure that paint performance is maintained in both colour matching accuracy and finish quality in a wide range of climatic conditions and temperatures.
3 - Tip top f low rates! The new high flow rate fluid tip design ensures the GTi Pro’s LITE’s superb versatility to handle a range of viscosities and virtually eliminating the need to change tips to suit different materials.
4 - The big squeeze! The GTi Pro LITE has a re-designed trigger profile for ultimate comfort and wrap around finger grip when triggered or at rest.

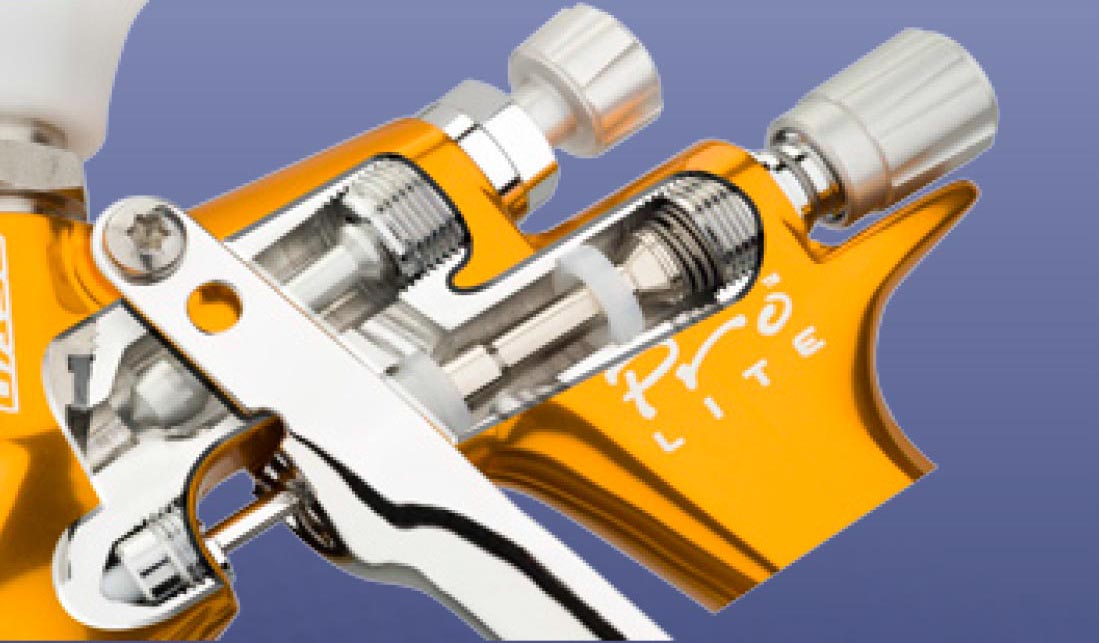

5 - Go coaxial…A revolutionary, coaxial no kick air valve provides the painter with a supersmooth trigger action, blending air and fluid almostseamlessly to ensure pinpoint gun control, unparalleled finish quality and colour accuracy.
6 - Ergonomically speaking…
The ergonomically designed gun body, forged in lightweight aluminium and by making subtle revisions to the shape of the hand grip, the GTi Pro LITE
retains the legendary fit and feel that has kept DeVilbiss at the cutting edge of professional spray gun design.
7 - Who’s cheating?
You asked for it, so we have included the cheater
valve for accurate air control, at the gun.
8 - Torx show…
Trigger removal, whenever necessary, has never been easier – no more screwdriver juggling – fast and positive, single sided removal with the Torx tool provided.
9 - Total control The fan and fluid controls
and valves are engineered in lightweight alloy, together with the use of leading edge plastics and PTFE guaranteeing every part operates smoothly without the need for lubrication – no lubricants
means no paint contamination and smoother operation, particularly when wearing gloves.
10 - Make it snappy. There are four colour coded snap rings, designed to provide easy identification and ensuring you have the right gun for the job.
The Light Heavyweight
Super fast process times and rapid throughput is what it’s all about these days and there’s one professional spray gun that really sets the pace, the lightweight gun with the heavyweight performance from DeVilbiss. It’s called the GTi Pro LITE. Ergonomic and Economic Our engineers have taken the industry leading GTi Pro and reduced its overall weight by 25%.
What’s more, they’ve achieved what was never thought possible. They’ve improved the performance and ergonomics of the professional refinisher’s favourite gun, while achieving new levels of fit and feel ensuring unbelievable handling for incredible results. Those clever engineers at DeVilbiss have also developed a coaxial linear air valve that eliminates the need for separate air and fluid control valves. This dramatically reduces gun weight, cleaning and maintenance time, while providing total trigger control and a seamless blend of air and fluid for brilliant blends and fantastic fades.
Intelligent Atomisation
no.12
HV30
no.13
TE10
no.14
TE20
The GTI PRO LITE is available with the option of one HVLP air cap and two High Efficiency air caps, plus three fluid tips, which provide extraordinary levels of atomisation performance to suit a wide range of refinish materials and viscosities. It is no secret that refinish materials and in particular waterbornes, are affected by temperature changes in the spray booth. As most spray booths only heat the input air, the outside air temperature can lead to the spraying temperature being either too high or, in extreme cold climates, too low. The flexible atomisation platform, which is a key part of the GTi Pro LITE specification means the correct set-up will ensure perfect application and accurate colour matches, while maintaining the ultimate finish quality.

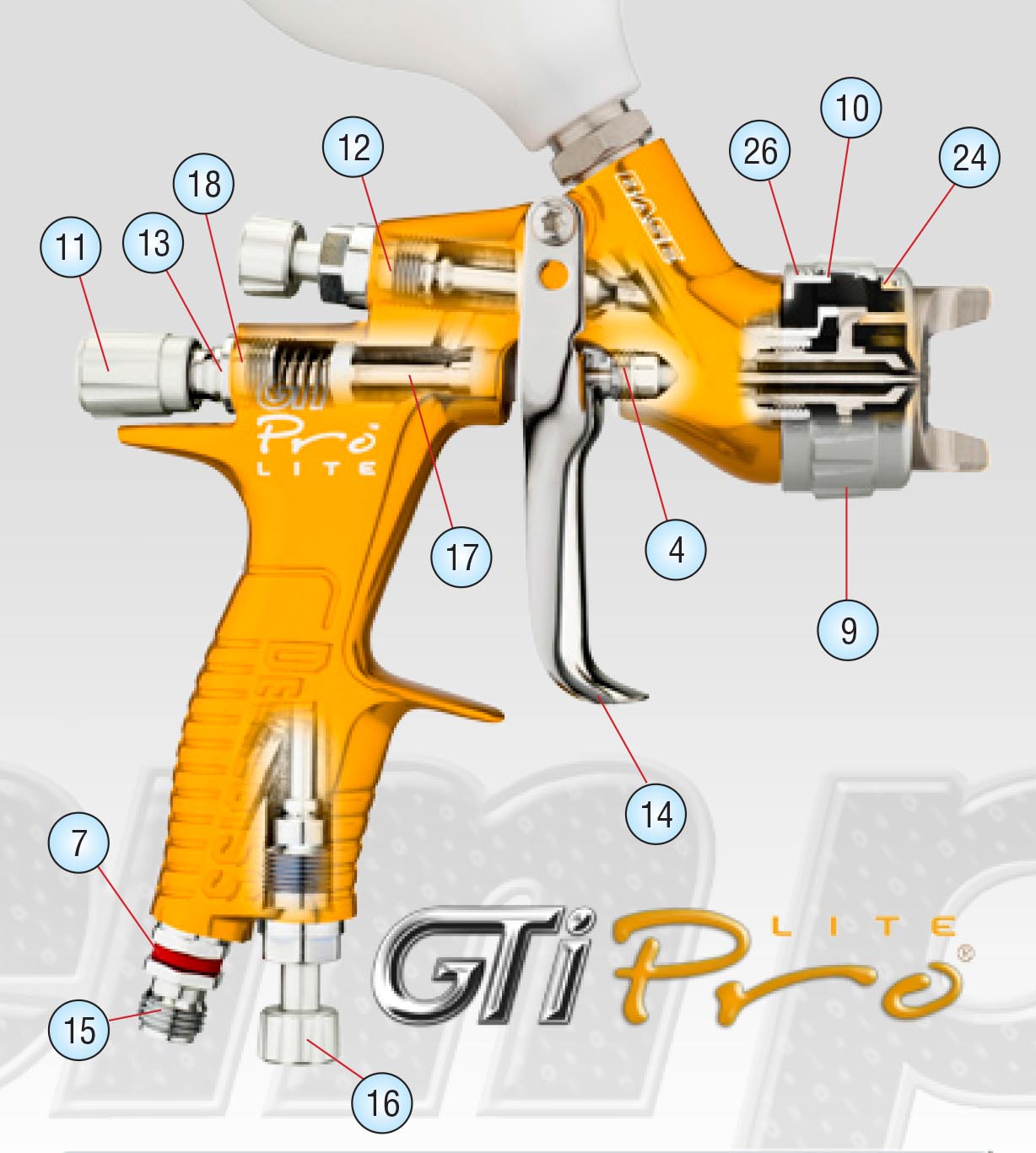

Pistolet GTI PRO LITE Devilbiss - części
Ref: These Parts Fit ALL i-system Pro Spray Guns
These Parts Fit GTI Pro Suction / Pressure Spray Guns
1
SN-6-K
Body Bushing & Seal (Excl. Pro Lite)
19
PRO-12-K

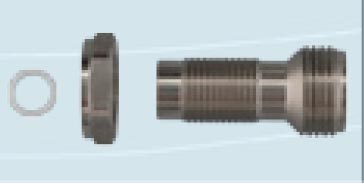

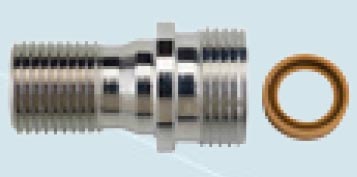

Fluid Inlet Connector Kit
These Parts Fit SRi Pro Spray Guns

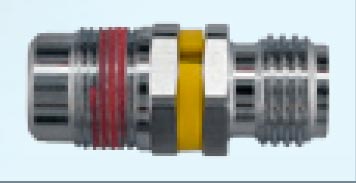

2
SN-40-K

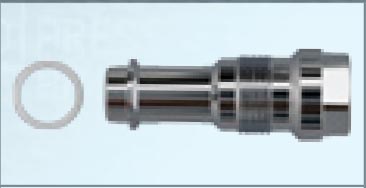

Air Inlet Connector (Excl. Pro Lite)
20
SRIPRO-2-K5
Kit of 5 Separators
3
SN-405-K5

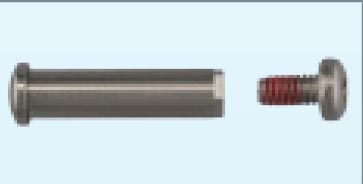

Kit of 5 Stud and Screw Kits (Excl. Pro Lite)

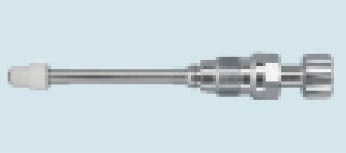

21
SRIPRO-401-K

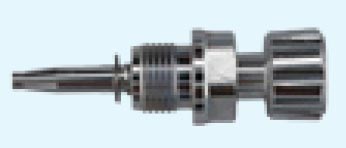

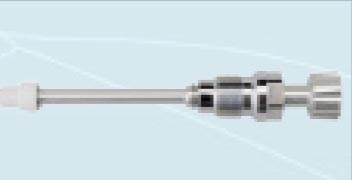

Spreader valve Assembly

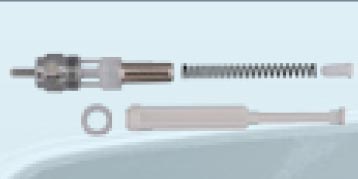

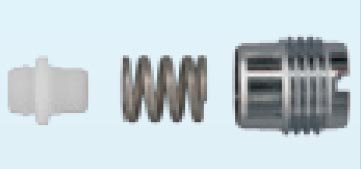

4
SN-404-K
Packing, Spring & Packing Nut Kit
22
SN-42-K

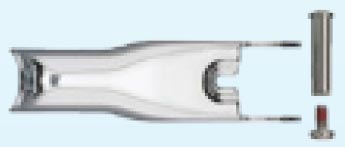

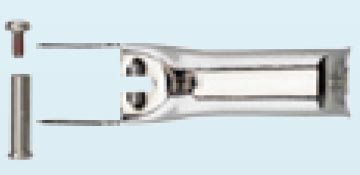

Trigger, Stud & Screw Kit
These Parts Fit GTi Pro and Pri Pro Gravity Spray Guns
5
SN-402-K
Air Valve Replacement Kit (Excl.Pro Lite)

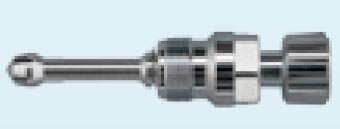

23
PRO-402-K
Spreader Valve Assembly
These Parts Fit GTI Pro Lite,GTi Pro Gravity,Suction/Pressure&PRi Pro SprayGuns

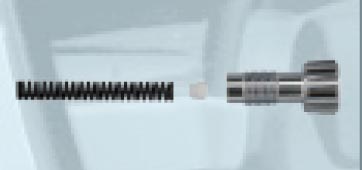

6a
PRO-3-K
Fluid Adjusting Knob, Spring & Pad Kit (Excl. Pro Lite)
24

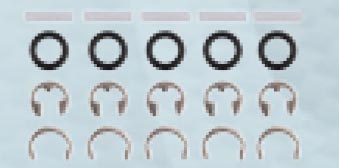

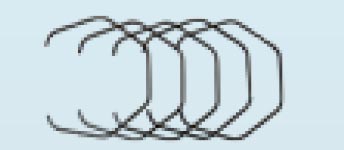

JGA-156-K5
Kit of 5 Air Cap Retaining Clips

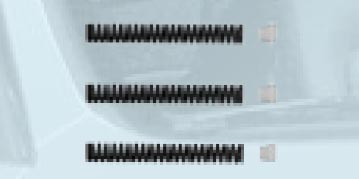

6b
SN-4-K3
Kit of 3 Fluid Needle Springs & Pads (Excl. Pro Lite)
25
PRO-405-K
Air Cap Retaining Ring & Seals (Excl. Pro Lite)
7
SN-26-K4
Colour ID Ring Kit (4 Colours)

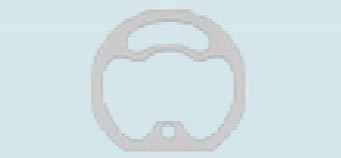

26
SN-18-1-K2

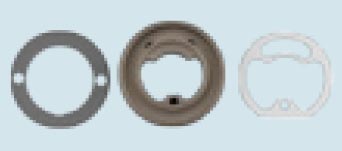

Kit of 2 Spray Head Seals
8
SN-34-K5
Kit of 5 Air Valve Seals (Excl. Pro Lite)
27
SN-17-1-K
Spray Head & Seal Kit (Excl. Pro Lite)
These Parts Fit GTi Pro Lite Spray Guns only
9
PRO 420-K

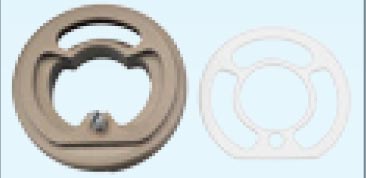

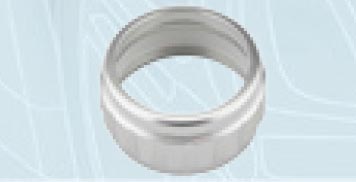

Air Cap Retaining Rings and Seals
28
SN-21-K
Trigger, Stud & Screw Kit (Excl. Pro Lite)
10
SN-69-K
Spray Head & Seal Kit

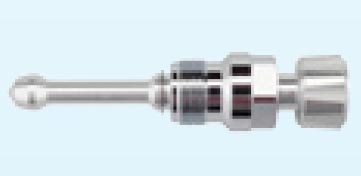

29
PRO-411-K
Airflow Valve (Excl. Pro Lite & SRI Pro)

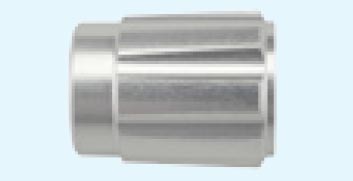

11
SN-67-C-K
Fluid Adjusting Knob
30
SN-41-K
Baffle Plate (Excl. Pro Lite)
These Parts Fit GTi Pro Suction / Pressure & SRi Pro Spray Guns
