DeVilbiss Advance HD Trans-Tech - Części do pistoletu advance HD |
| |

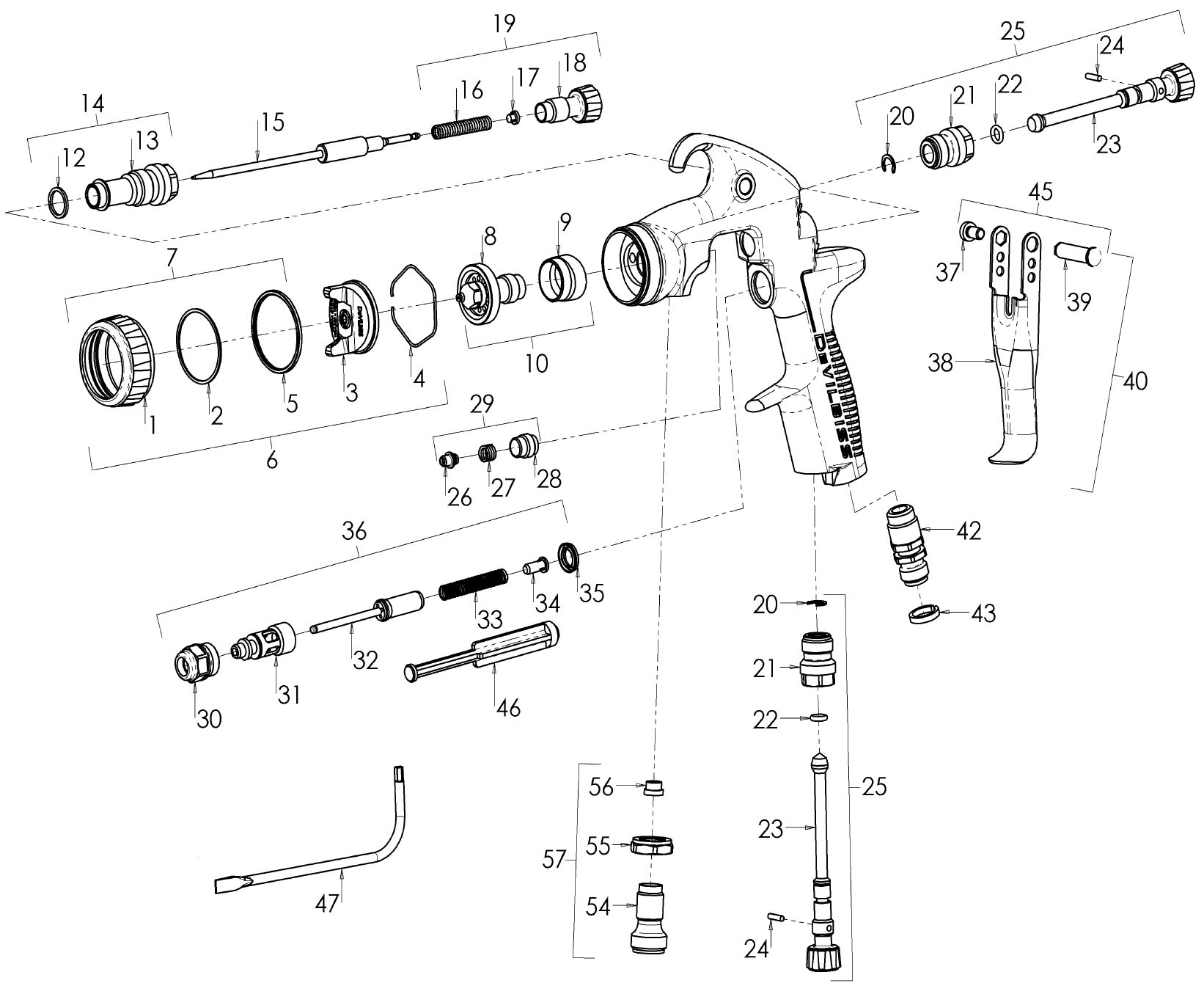

| Części do pistoletu advance HD |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1 |
|
Air cap retaining ring |
| 2 |
|
Slip ring |
| 3 |
|
Air cap |
| 4 |
JGA-156-K5 |
Air cap retaining ring |
| 5 |
|
Retaining ring seal |
| 6 |
|
Air cap and ring (see table) |
| 7 |
ADV-403-K |
Air cap retaining ring & seals |
| 8 |
|
Fluid nozzle (see table) |
| 9 |
SP-626-K5 |
Separator |
| 10 |
|
Fluid nozzle kit (see table) |
| 12* |
|
Body bushing seal |
| 13 |
|
Body bushing |
| 14 |
SN-6-K |
Body bushing & seal |
| 15 |
|
Fluid needle (see table) |
| 16* |
|
Needle spring |
| 17* |
|
Needle spring pad |
| 18 |
|
Fluid adjusting knob |
| 19 |
ADV-6-K |
Fluid adjusting knob, spring & pad kit |
| 20* |
|
Retaining Clip |
| 21* |
|
Spreader valve body |
| 22* |
|
Spreader valve seal |
| 23 |
|
Spreader valve adjusting knob |
| 24* |
|
Spreader valve pin |
| 25 |
ADV-401-K |
Spreader valve assembly |
| 26* |
|
Needle packing |
| 27* |
|
Packing spring |
| 28* |
|
Packing nut |
| 29 |
SN-404-K |
Packing spring & packing nut kit |
| Ref. |
Part no. |
Description |
| 29a** |
ADV-406-K2 |
Ceremic packing - kit of 2 |
| 30 |
|
Air valve body |
| 31 |
|
Air valve cage |
| 32 |
|
Air valve poppet |
| 33 |
|
Air valve spring |
| 34 |
|
Air valve spring pad |
| 35 |
SN-34-K5 |
Air valve seal |
| 36 |
SN-402-K |
Air valve assembly |
| 37* |
|
Trigger stud screw (T20 torx) |
| 38 |
|
Trigger |
| 39* |
|
Trigger stud |
| 40 |
SN-63-K |
Trigger stud and screw set |
| 42 |
SN-9-K |
Air inlet |
| 43 |
SN-26-K4 |
Colour ID ring kit (4 colours) |
| 45 |
SN-405-K5 |
Stud and screw kit |
| 46 |
|
Air valve service tool |
| 47 |
SPN-8-K2 |
Torx key |
| 54 |
|
Fluid inlet connector |
| 55 |
|
Lock Nut |
| 56 |
|
Seal |
| 57 |
ADV-7-K |
Fluid inlet connector kit |
|
|
|
|
PRO-415-1 |
Spray gun repair kit (items marked *) |
|
GTI-428-K5 |
Seal and Pin Kit (kit of 5) items 20,22 &24 |
|
| |

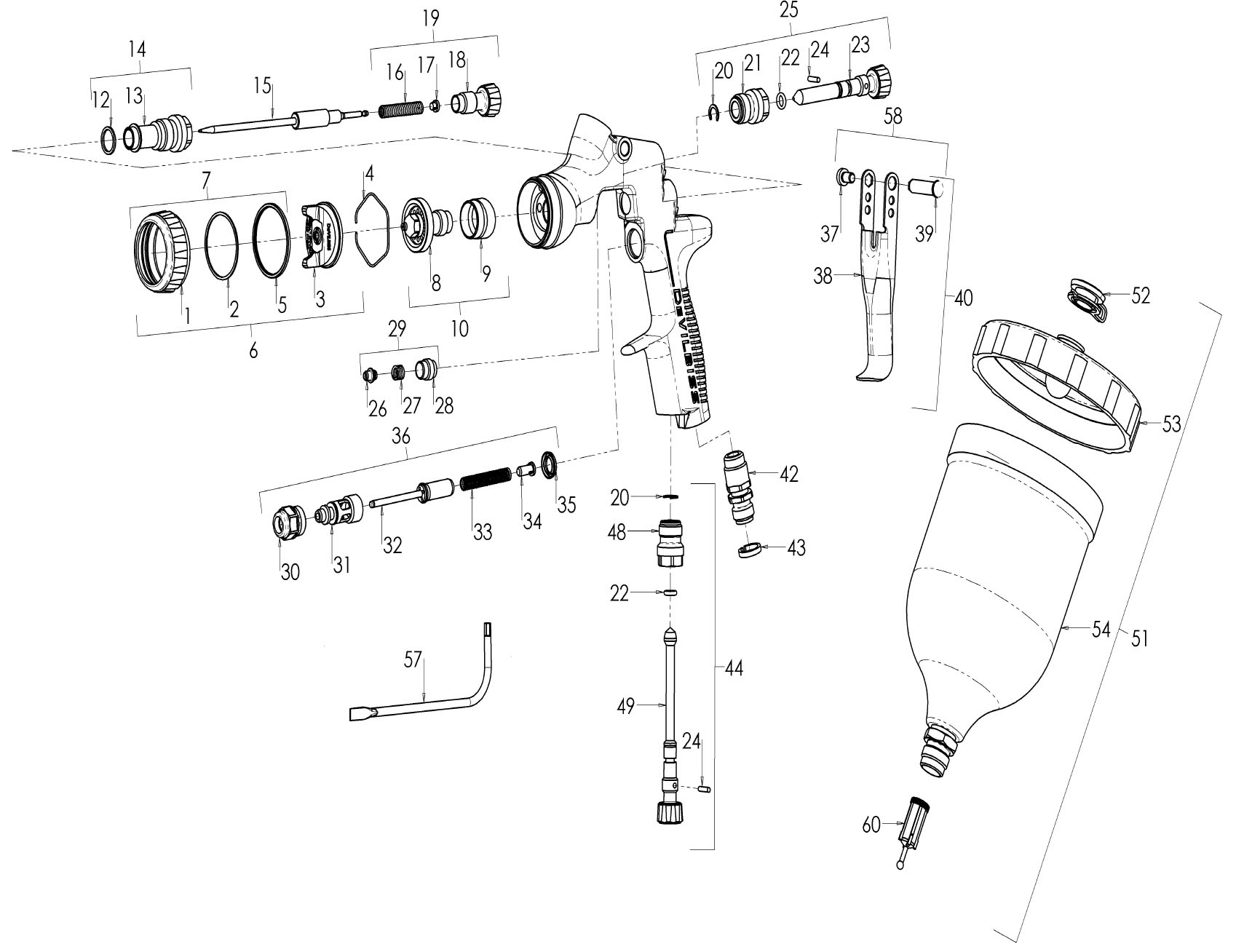

| Części do pistoletu Advance HD Gravity |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1 |
|
Air cap retaining ring |
| 2 |
|
Slip ring |
| 3 |
|
Air cap |
| 4 |
JGA-156-K5 |
Air cap retaining ring |
| 5 |
|
Retaining ring seal |
| 6 |
|
Air cap and ring (see table) |
| 7 |
ADV-403-K |
Air cap retaining ring & seals |
| 8 |
|
Fluid nozzle (see table) |
| 9 |
SP-626-K5 |
Separator |
| 10 |
|
Fluid nozzle kit (see table) |
| 12* |
|
Body bushing seal |
| 13 |
|
Body bushing |
| 14 |
SN-6-K |
Body bushing & seal |
| 15 |
|
Fluid needle (see table) |
| 16* |
|
Needle spring |
| 17* |
|
Needle spring pad |
| 18 |
|
Fluid adjusting knob |
| 19 |
ADV-6-K |
Fluid adjusting knob, spring & pad kit |
| 20* |
|
Retaining Clip |
| 21* |
|
Spreader valve body |
| 22* |
|
Spreader valve seal |
| 23 |
|
Spreader valve adjusting adjusting knob |
| 24* |
|
Spreader valve pin |
| 25 |
ADV-402-K |
Spreader valve assembly |
| 26* |
|
Needle packing |
| 27* |
|
Packing spring |
| 28* |
|
Packing nut |
| 29 |
SN-404-K |
Packing spring & packing nut kit |
| Ref. |
Part no. |
Description |
| 30 |
|
Air valve body |
| 31 |
|
Air valve cage |
| 32 |
|
Air valve poppet |
| 33 |
|
Air valve spring |
| 34 |
|
Air valve spring pad |
| 35 |
SN-34-K5 |
Air valve seal |
| 36 |
SN-402-K |
Air valve assembly |
| 37* |
|
Trigger stud screw (T20 torx) |
| 38 |
|
Trigger |
| 39* |
|
Trigger stud |
| 40 |
SN-63-K |
Trigger stud and screw set |
| 42 |
SN-9-K |
Air inlet |
| 43 |
SN-26-K4 |
Colour ID ring kit (4 colours) |
| 44 |
ADV-401-K |
Airflow valve |
| 48 |
|
Valve body |
| 49 |
|
Valve stem |
| 51 |
GFC-501 |
Gravity cup kit |
| 52 |
GFC-2-K5 |
Drip check lid (kit of 5) |
| 53 |
GFC-402 |
Gravity cup lid |
| 54 |
|
Gravity cup |
| 56 |
|
Air valve service kit |
| 57 |
SPN-8-K2 |
Torx key |
| 58 |
SN-405-K5 |
Stud and screw kit |
| 59 |
SN-406 |
Spanner |
| 60 |
KGP-5-K5 |
Filter (Pack of 5) |
|
PRO-415-1 |
Spray gun repair kit (items marked *) |
|
GTI-428-K5 |
Seal and Pin Kit (kit of 5) items 20,22 &24 |
|
| |

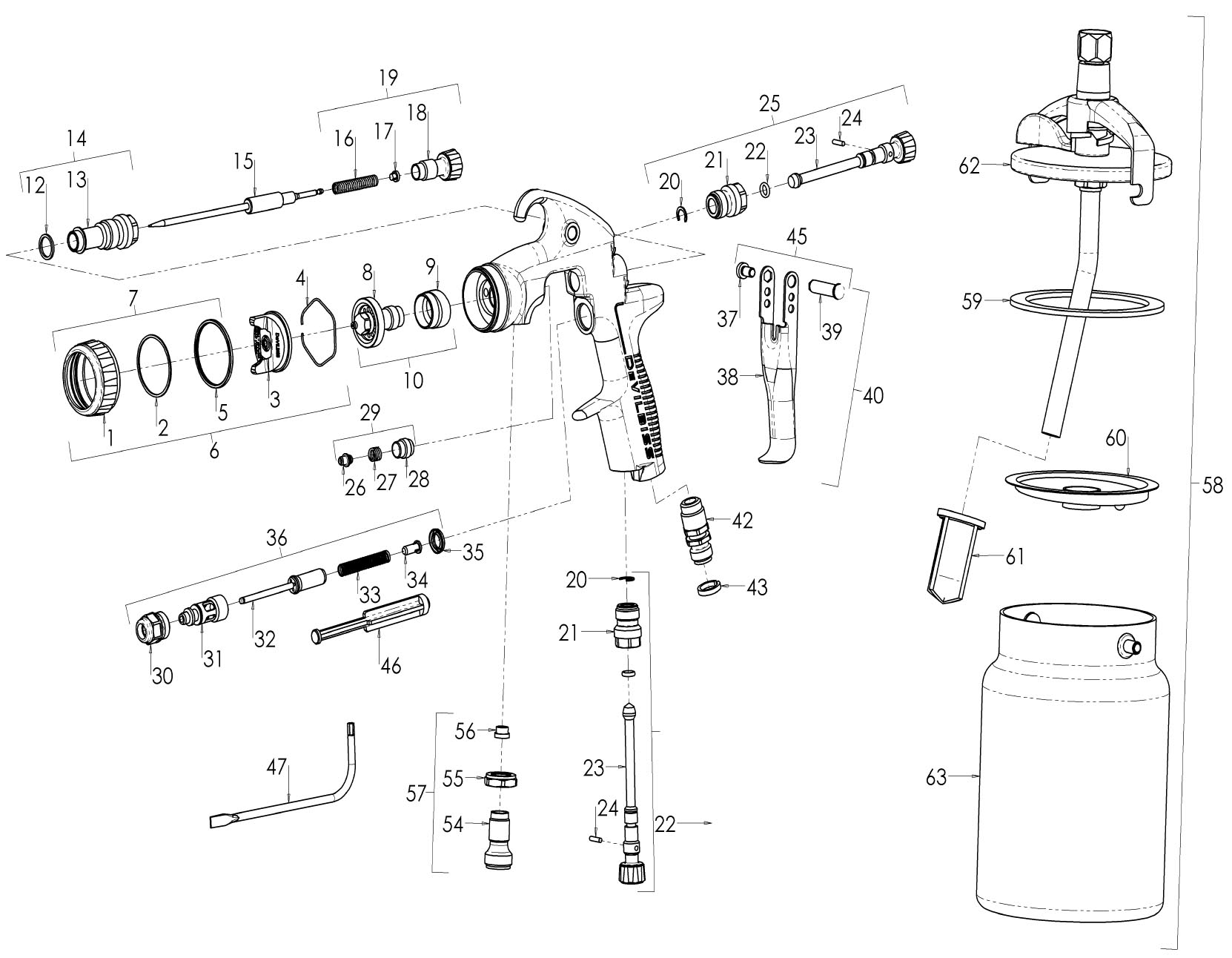

| Części do pistoletu Advance HD Suction |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1 |
|
Air cap retaining ring |
| 2 |
|
Slip ring |
| 3 |
|
Air cap |
| 4 |
Air cap retaining ring |
|
| 5 |
|
Retaining ring seal |
| 6 |
|
Air cap and ring (see table) |
| 7 |
ADV-403-K |
Air cap retaining ring & seals |
| 8 |
|
Fluid nozzle (see table) |
| 9 |
SP-626-K5 |
Separator |
| 10 |
|
Fluid nozzle kit (see table) |
| 12* |
|
Body bushing seal |
| 13 |
|
Body bushing |
| 14 |
SN-6-K |
Body bushing & seal |
| 15 |
|
Fluid needle (see table) |
| 16* |
|
Needle spring |
| 17* |
|
Needle spring pad |
| 18 |
|
Fluid adjusting knob |
| 19 |
ADV-6-K |
Fluid adjusting knob, spring & pad kit |
| 20* |
|
Retaining Clip |
| 21* |
|
Spreader valve body |
| 22* |
|
Spreader valve seal |
| 23 |
|
Spreader valve adjusting adjusting knob |
| 24* |
|
Spreader valve pin |
| 25 |
ADV-401-K |
Spreader valve assembly |
| 26* |
|
Needle packing |
| 27* |
|
Packing spring |
| 28* |
|
Packing nut |
| 29 |
SN-404-K |
Packing spring & packing nut kit |
| Ref. |
Part no. |
Description |
| 30 |
|
Air valve body |
| 31 |
|
Air valve cage |
| 32 |
|
Air valve poppet |
| 33 |
|
Air valve spring |
| 34 |
|
Air valve spring pad |
| 35 |
SN-34-K5 |
Air valve seal |
| 36 |
SN-402-K |
Air valve assembly |
| 37* |
|
Trigger stud screw (T20 torx) |
| 38 |
|
Trigger |
| 39* |
|
Trigger stud |
| 40 |
SN-63-K |
Trigger stud and screw set |
| 42 |
SN-9-K |
Air inlet |
| 43 |
SN-26-K4 |
Colour ID ring kit (4 colours) |
| 45 |
SN-405-K5 |
Stud and screw kit |
| 46 |
|
Air valve service tool |
| 47 |
SPN-8-K2 |
Torx key |
| 54 |
|
Fluid inlet connector |
| 55 |
|
Lock Nut |
| 56 |
|
Seal |
| 57 |
ADV-7-K |
Fluid inlet connector kit |
| 58 |
KR-566-1-B |
Suction cup complete with lid |
| 59 |
KR-11-K3 |
Cup lid gasket - kit of 3 |
| 60 |
KR-115-K5 |
Drip check diaphragm - kit of 5 |
| 61 |
KR-484-K10 |
Filter - Kit of 10 |
| 62 |
KR-4001-B |
Lid assembly |
| 63 |
KR-466-K |
Cup |
|
PRO-415-1 |
Spray gun repair kit (items marked *) |
|
GTI-428-K5 |
Seal and Pin Kit (kit of 5) items 20,22 &24 |
|
| |
| |
| |
