VRI PRO spray gun DEVILBISS


vri pro spray gun devilbiss

Making light work...

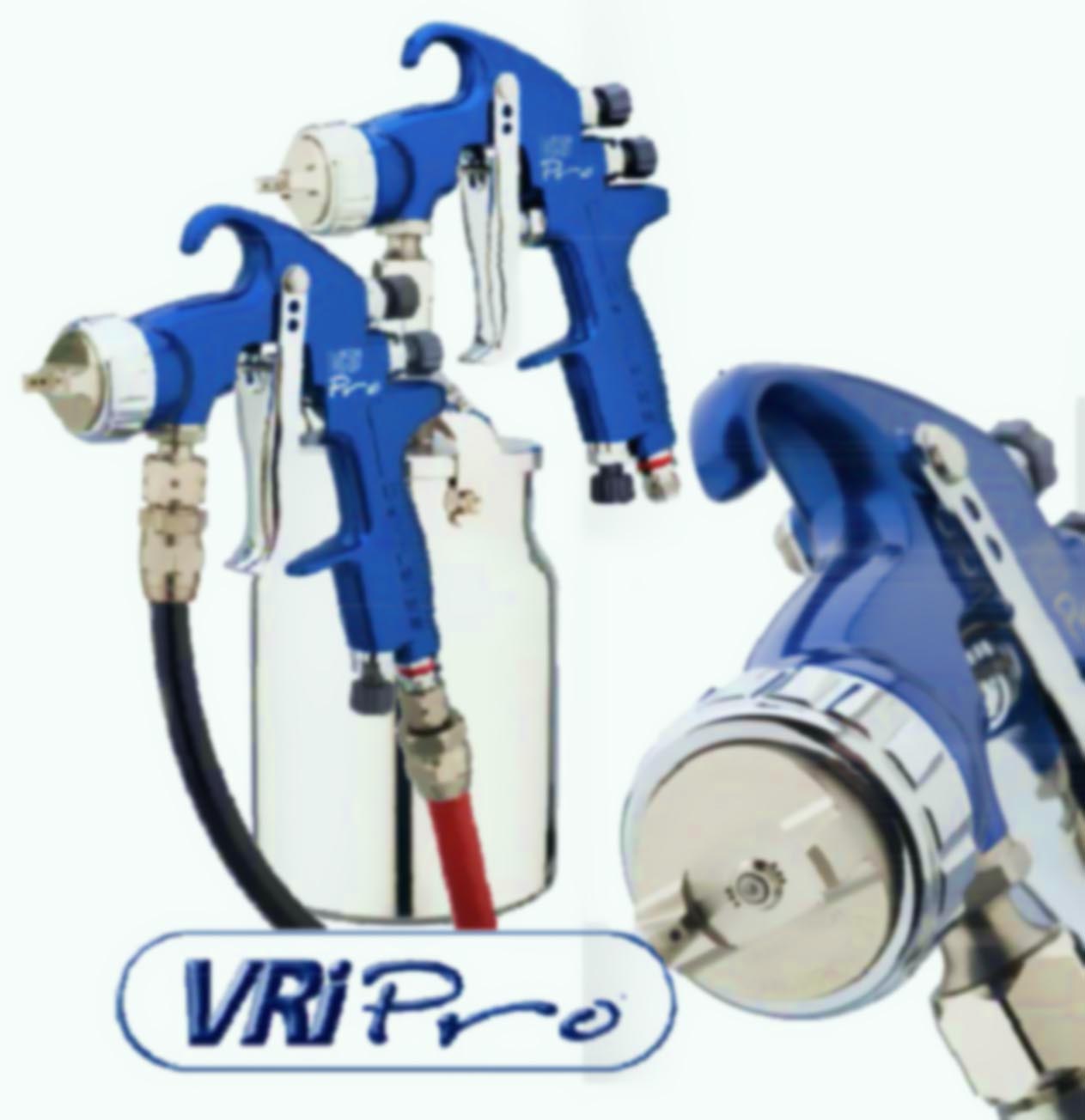

The VRi Pro pressure and suction feed, mid size, spray guns are designed to make light work of painting large areas on commercial trucks and vans. We’ve taken all the control and performance benefits from the GTi Pro models and fitted them to the VRi Pro ergonomic and compact gun body. It’s lighter too, thanks to the weight saving aluminium air and fluid valve controls. The TV1 Trans-Tech air cap is designed for use with the suction gun and the TV 2 for use with pressure feed from a remote cup, tank or pump.

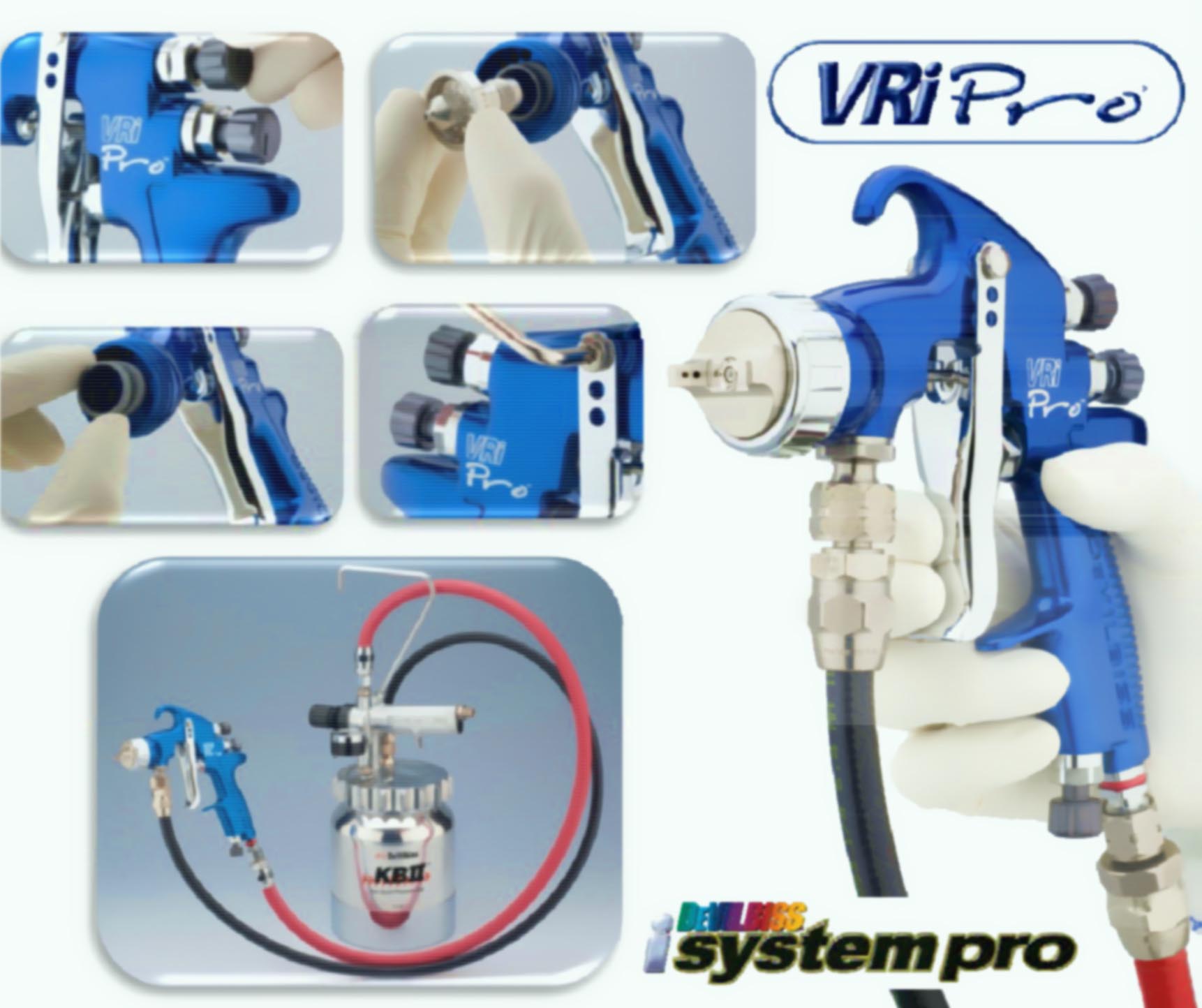

VRi Pro Trans-Tech Suction & Pressure Spray Gun Kits

Part Number Example:- VRISPRO-TV1- ZZ (Suction) or VRIPPRO-TV2- ZZ(Pressure).
ZZ = the fluid tip size -choose from 0.85 or 14 (Pressure) or 16 or 18 (Suction).
Trans-Tech Air Caps TV1 for Suction, TV2 for Pressure.
The DGi Pro digital inlet gauge fits all i-system pro spray guns.

vri-pro

The Mid Weight Contender...

Today’s professional automotive refinishers can now choose their preferred gun size and weight from the DeVilbiss i-system pro range, with the introduction of the VRi Pro, which combines mid-size gun ergonomics with the acclaimed high performance Trans-Tech atomisation.
The tough, drop forged and deep anodised gun body offers good grip, comfort and balance with superb atomisation and uniform lay down of all leading solvent and waterborne automotive refinish paints, while the “no-kick”, balanced air valve, which ensures that your trigger control is as smooth to use as the finish you’ll achieve.
The three aluminium air and fluid controls and slimmer reshaped ergonomic body all contribute to the reduced gun weight, noticeable when spraying larger areas.
The front end design is simplicity itself the air cap retaining threads on the gun body and a simple push in separator/seal behind the fluid tip to control fan and atomising air flows.

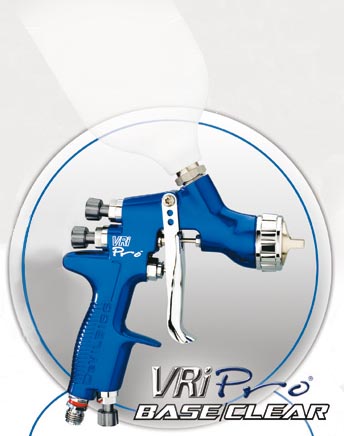

VRi Pro Trans-Tech Gravity Spray Gun Kits

Model Number Example:-VRIPRO-TV1- ZZZZ = the fluid tip size -choose from 12 or 13
Same Trans-Tech TV1 air cap
Matching fluid needle is supplie

Specification
Air Inlet Thread 1/4” Universal
Weight (gun & cup) 665 gms
Air Cap & Ring Plated Brass
Fluid Tip & Needle Stainless Steel
Full performance data overleaf
vri pro devilbiss
Air Cap Quick Ref TV1
Compliance Technology Trans-Tech
Air Consumption (lit/Min) 283 (10 cfm) @ 2.0 bar
Spray Pattern Size @ 175 mm Target Distance 255-285 mm
Fluid Flow (cc/ml min) 150 - 200


Technical Specification


Air Inlet Thread - 1/4” Universal
Weight (gun & cup) - 665 gms
Air Cap & Ring - Plated Brass
Fluid Tip - Stainless Steel
Needle - Stainless Steel
Cup capacity - 560 mls

The Mid Weight Contender...


Today’s professional automotive refinishers can now choose their preferred gun size and weight from the DeVilbiss i-system pro range, with the introduction of the VRi Pro, which combines mid-size gun ergonomics with the acclaimed high performance Trans-Tech atomisation.

The tough, drop forged and deep anodised gun body offers good grip, comfort and balance with superb atomisation and uniform lay down of all leading solvent and waterborne automotive refinish paints, while the “no-kick”, balanced air valve ensures that your trigger control is as smooth to use as the finish you’ll achieve.

The three aluminium air and fluid controls and slimmer reshaped ergonomic body all contribute to the reduced gun weight, noticeable when spraying larger areas.

The front end design is simplicity itself the air cap retaining threads on the gun body and a simple push in separator/seal behind the fluid tip to control fan and atomising air flows.


spray gun vri pro devilbissspray gun vri pro devilbiss

New Auto Refinish Mid-Size Guns for Commercial Vehicle Duty


We are pleased to announce the introduction of the"VRi Pro" pressure & suction guns to our compliant range. This joins our family of i-system “pro” compliant gun models fitting between the SRi Pro & the GTi Pro models. The gun is anodised in a deep blue, and the gun body is laser marked as VRi Pro and the air caps are marked as VRi Pro - XXX.
So fundamentally the body is similar to its predecessor the light blue CVi with the same diameter air caps but a new design of push-in air separator seal. The cap retaining ring threads are on the gun body forging.
The key difference is of course that the gun features a separate air flow valve in place of the concentric “in-line” valve which we launched with the CVi P & S guns.
The valve is the highly successful “balanced no-kick” design which was initially developed for the complete range of GTi Pro, PRi Pro and SRi Pro compliant guns.
The three air & fluid control knobs are also different in that they are lighter weight aluminium in place of plated brass. The air cap retaining ring however remains a plated brass item in the interests of Durability and long service life.


LIGHTER WEIGHT MID SIZE COMPLIANT AND SUCTION FEED SPRAY GUNS


- Durable drop forged gun body for a long service life
- Lighter weight design with ergonomic curved handle grip
- Perfect for large area Commercial and PSV large area painting
- Balanced “kick free” air valve for precision control of air and paint
- Available as either remote pressure feed or with suction cup
- Precision high grade stainless steel fluid tips and needles
- Reduced overspray and significant material savings
- Fully ATEX approved for bodyshop spray booth duty
