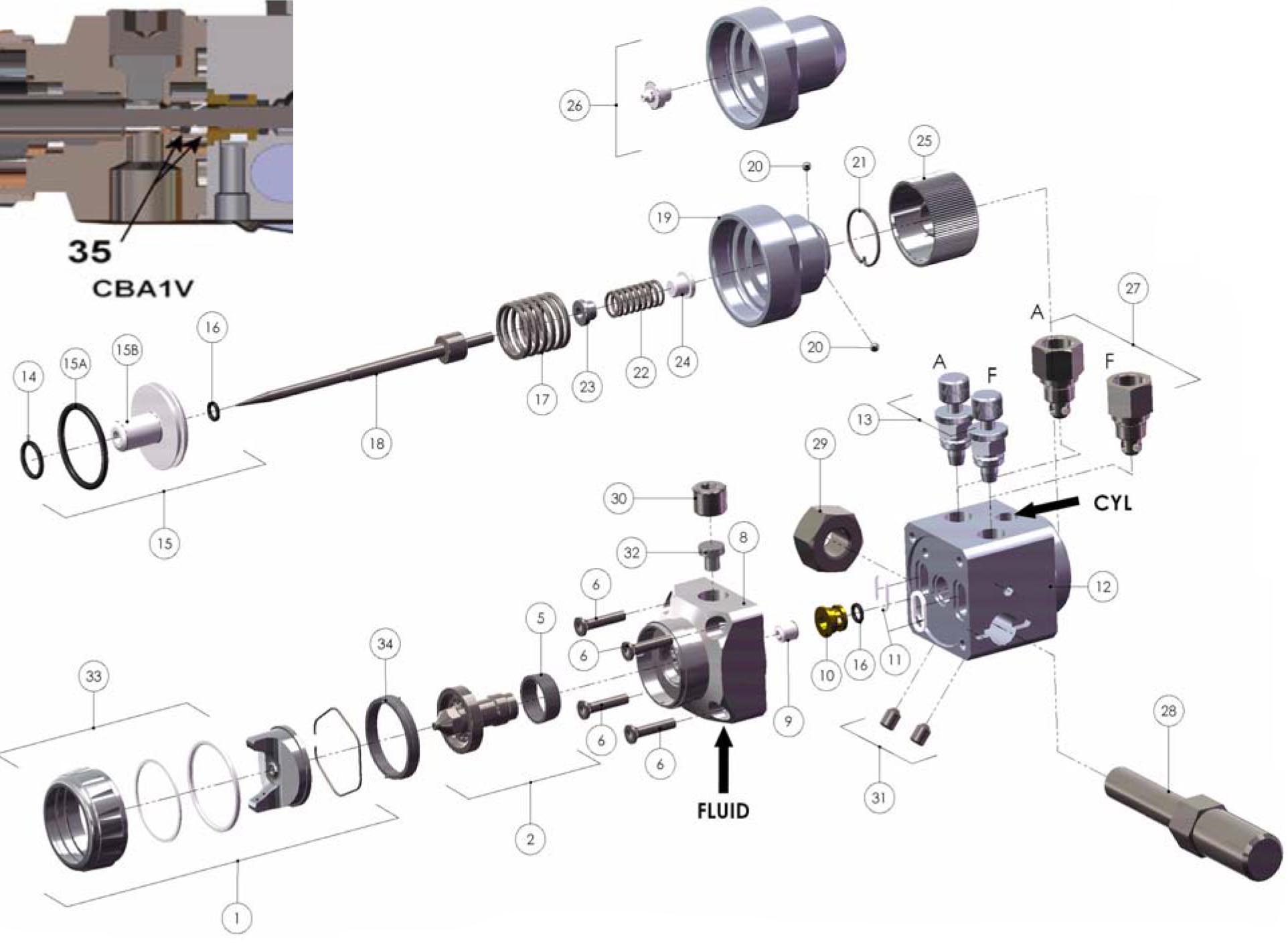

| Rep |
Ref |
Description |
Qty |
| 1 |
SP-100-xxx-COM-K |
Air cap and its retaining ring with seals. See chart |
1 |
| 2 |
SP-200S-xx-K
SP-247S-xx-K
SP-259S-xx-K |
Tip with air separator seal
Ø 0,85 / 1,0 / 1,2 / 1,4 / 1,6 /1,8 / 2,0 / 2,2
Ø 2,2 / 2,8 for Air cap 470
Ø 0,5 / 0,7 / 1,0 for Air cap 590 |
1 |
| 5 |
SPA-27-K5 |
Separator Kit of 5 |
1 |
| 6 |
S-14192-K4 |
Screw M4 x 25 kit of 4 (Torx 20 ) |
4 |
| 8 |
SPA-40 |
Spray head |
1 |
| 9 |
SPA-86-K
SPA-86-K10 |
Packing -Kit of 1
Packing -Kit of 10 |
1 |
| 10 |
SPA-10 |
Spacer |
1 |
| 11 |
SPA-53-K10 |
Gasket kit of 10 |
2 |
| 12 |
SPA-1-CBA1 |
Gun body |
1 |
| 13 |
AGG-403 |
Air valve (Fan and atomising) |
2 |
| 14 |
S-28220X-K2 |
O Ring Kit of 2 |
1 |
| 15 |
SPA-6X-K |
Piston + Seals (16,14,15a,15b) |
1 |
| 15a |
S-28225X-K2 |
O Ring Kit of 2 |
1 |
| 16 |
S-28219X-K4 |
O Ring Kit of 4 |
1 |
| 17 |
SPA-13 |
Piston Spring |
1 |
| 18 |
SPA-310-xx-K
SPA-310P-xx-K
SPA-310N-xx-K |
Stainless steel needle
0.5/0.7/0,85/1,0/1,2/1,4/1,6/1.8/2.0/2.2
Acetal Tipped Stainless Steel Needle 085-10 & 1,4
Hardened Needle 1,0 / 1,2 /1,4 / 1,6 |
1 |
| 19 |
SPA-404-K |
Rear Housing Assembly |
1 |
| 20 |
SPA-KK-1 |
Ring and ball for ratchet |
1 |
| 21 |
3 |
| 22 |
SPA-31 |
Spring |
1 |
| 23 |
SPA-37 |
Collar |
1 |
| 24 |
SPA-49 |
Button |
1 |
| 25 |
SPA-4 |
Adjusting knob |
1 |
| 26* |
SPA-7-K |
Kit rear housing without adjustment |
|
| 27* |
SPA-22-K2 |
Kit of air connector for remote control |
|
| 28* |
AGGS-33 |
Mounting Bar |
|
| 29* |
SS-659-CD |
Nut |
|
| 30 |
S-18226 |
Plug ¼ BSP (No recirculation) |
1 |
| 31 |
S-1444-H |
M5 Set screw, 8 long |
2 |
| 32 |
SPA-26 |
Plug (No recirculation) |
1 |
| 33 |
ADV-403-K |
Retaining ring & seals |
1 |
| 34* |
SPA-112 |
Index ring (Air cap) |
1 |
| 35 |
SPA-20V-K5
|
Packing & O Ring kit of 5 (CBA1V)
|
1 |
|
