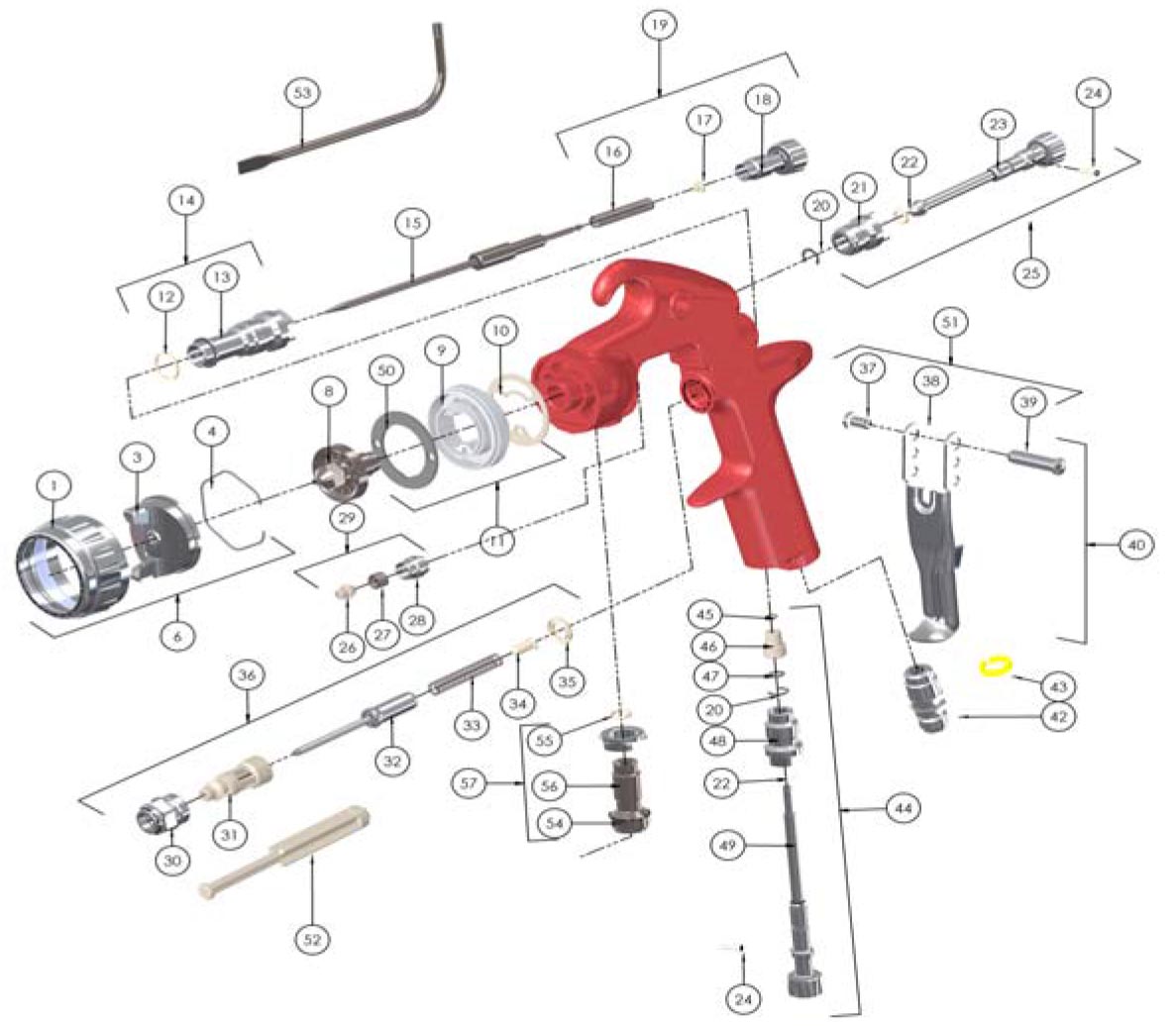

Pistolet lakierniczy ręczny DEVILBISS - części do pistoletu JGA HD |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1 |
PRO-405-K |
Air cap retaining ring |
| 3 |
|
Air cap |
| 4 |
JGA-156-K5 |
Air cap retaining clip |
| 6 |
|
Air cap and ring (see table) |
| 8 |
PROC-...-..-K |
Fluid nozzle (see table) |
| 9 |
|
Spray head |
| 10* |
SN-18-1-K2 |
Spray head seal (kit of 2) |
| 11 |
SN-17-1-K |
Spray head and seal kit |
| 12* |
|
Body bushing seal |
| 13 |
|
Body bushing |
| 14 |
SN-6-K |
Body bushing & seal |
| 15 |
|
Fluid needle (see table) |
| 16* |
|
Needle spring |
| 17 |
|
Needle spring pad |
| 18 |
|
Fluid adjusting knob |
| 19 |
PRO-3-K |
Fluid adjusting knob, spring & pad kit |
| 20* |
|
Retaining Clip |
| 21 |
|
Spreader valve body |
| 22* |
|
Spreader valve seal |
| 23 |
|
Spreader valve adjusting knob |
| 24* |
|
Spreader valve pin |
| 25 |
PRO-404-K |
Spreader valve assembly |
| 26* |
|
Needle packing |
| 27* |
|
Packing spring |
| 28 |
|
Packing nut |
| 29 |
SN-404-K |
Packing spring & packing nut kit |
| 30 |
|
Air valve body |
| 31 |
|
Air valve cage |
| 32 |
|
Air valve poppet |
| 33 |
|
Air valve spring |
| 34 |
|
Air valve spring pad |
| 35 |
SN-34-K5 |
Air valve seal |
| Ref. |
Part no. |
Description |
| 36 |
SN-402-K |
Air valve assembly |
| 37* |
|
Trigger stud screw (T20 torx) |
| 38 |
|
Trigger |
| 39* |
|
Trigger stud |
| 40 |
SN-21-K |
Trigger stud and screw set |
| 42 |
SN-40-K |
Air inlet |
| 43 |
SN-26-K4 |
Colour ID ring kit (4 colours) |
| 44 |
PRO-411-K |
Airflow valve |
| 45 |
|
Circlip |
| 46 |
|
Valve head |
| 47 |
|
Washer |
| 48 |
|
Valve body |
| 49 |
|
Valve stem |
| 50 |
SN-41-K |
Baffle plate |
| 51 |
SN-405-K5 |
Stud and screw kit |
| 52 |
|
Air valve service kit |
| 53 |
SPN-8-K2 |
Torx key |
| 54 |
|
Fluid inlet connector |
| 55 |
|
Lock nut |
| 56 |
|
Seal |
| 57 |
PRO-12-K |
Fluid inlet connector kit |
|
PRO-415-1 |
Spray gun repair kit (includes items marked *) |
|
GTI-428-K5 |
Seal and pin kit (items 20,22 & 24) kit of 5 |
|
| |

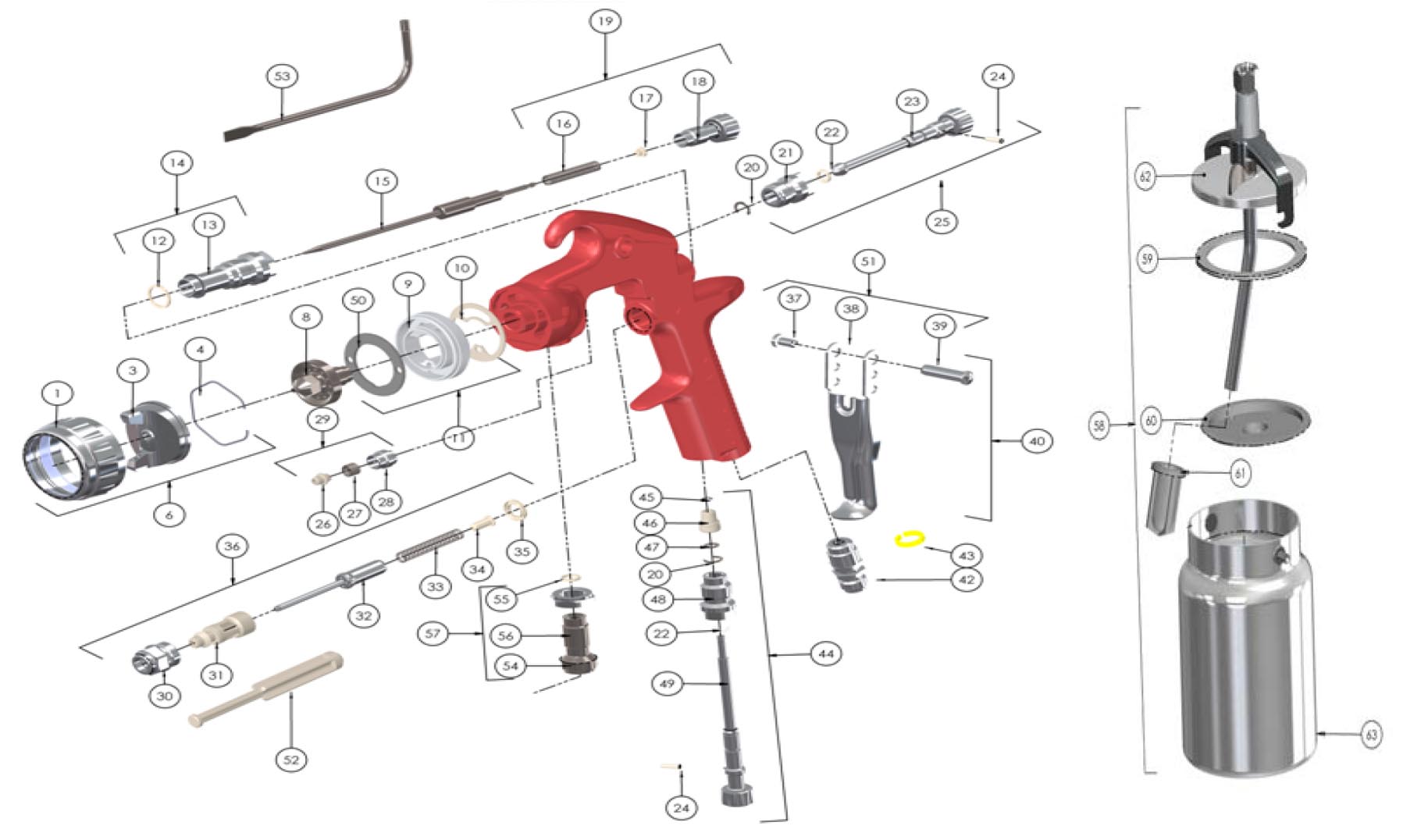

JGA HD Suction Spray Gun (Conventional) |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1 |
PRO-405-K |
Air cap retaining ring |
| 3 |
|
Air cap |
| 4 |
JGA-156-K5 |
Air cap retaining clip |
| 6 |
|
Air cap and ring (see table) |
| 8 |
PROC-220-..-K |
Fluid nozzle (see table) |
| 9 |
|
Spray head |
| 10* |
SN-18-1-K2 |
Spray head seal (kit of 2) |
| 11 |
SN-17-1-K |
Spray head and seal kit |
| 12* |
|
Body bushing seal |
| 13 |
|
Body bushing |
| 14 |
SN-6-K |
Body bushing & seal |
| 15 |
|
Fluid needle (see table) |
| 16* |
|
Needle spring |
| 17 |
|
Needle spring pad |
| 18 |
|
Fluid adjusting knob |
| 19 |
PRO-3-K |
Fluid adjusting knob, spring & pad kit |
| 20* |
|
Retaining Clip |
| 21 |
|
Spreader valve body |
| 22* |
|
Spreader valve seal |
| 23 |
|
Spreader valve adjusting knob |
| 24* |
|
Spreader valve pin |
| 25 |
PRO-404-K |
Spreader valve assembly |
| 26* |
|
Needle packing |
| 27* |
|
Packing spring |
| 28 |
|
Packing nut |
| 29 |
SN-404-K |
Packing spring & packing nut kit |
| 30 |
|
Air valve body |
| 31 |
|
Air valve cage |
| 32 |
|
Air valve poppet |
| 33 |
|
Air valve spring |
| 34 |
|
Air valve spring pad |
| 35 |
SN-34-K5 |
Air valve seal |
| Ref. |
Part no. |
Description |
| 36 |
SN-402-K |
Air valve assembly |
| 37* |
|
Trigger stud screw (T20 torx) |
| 38 |
|
Trigger |
| 39* |
|
Trigger stud |
| 40 |
SN-21-K |
Trigger stud and screw set |
| 42 |
SN-40-K |
Air inlet |
| 43 |
SN-26-K4 |
Colour ID ring kit (4 colours) |
| 44 |
PRO-411-K |
Airflow valve |
| 45 |
|
Circlip |
| 46 |
|
Valve head |
| 47 |
|
Washer |
| 48 |
|
Valve body |
| 49 |
|
Valve stem |
| 50 |
SN-41-K |
Baffle plate |
| 51 |
SN-405-K5 |
Stud and screw kit |
| 52 |
|
Air valve service kit |
| 53 |
SPN-8-K2 |
Torx key |
| 54 |
|
Fluid inlet connector |
| 55 |
|
Lock nut |
| 56 |
|
Seal |
| 57 |
PRO-12-K |
Fluid inlet connector kit |
| 58 |
KR-566-1-B |
Suction cup complete with lid |
| 59 |
KR-11-K3 |
Cup lid gasket - kit of 5 |
| 60 |
KR-115-K5 |
Drip check diaphragm - kit of 5 |
| 61 |
KR-484-K10 |
Filter - Kit of 10 |
| 62 |
KR-4001-B |
Lid assembly |
| 63 |
KR-466-K |
Cup |
|
PRO-415-1 |
Spray gun repair kit (includes items marked *) |
|
GTI-428-K5 |
Seal and pin kit (items 20,22 & 24) kit of 5 |
|
| |

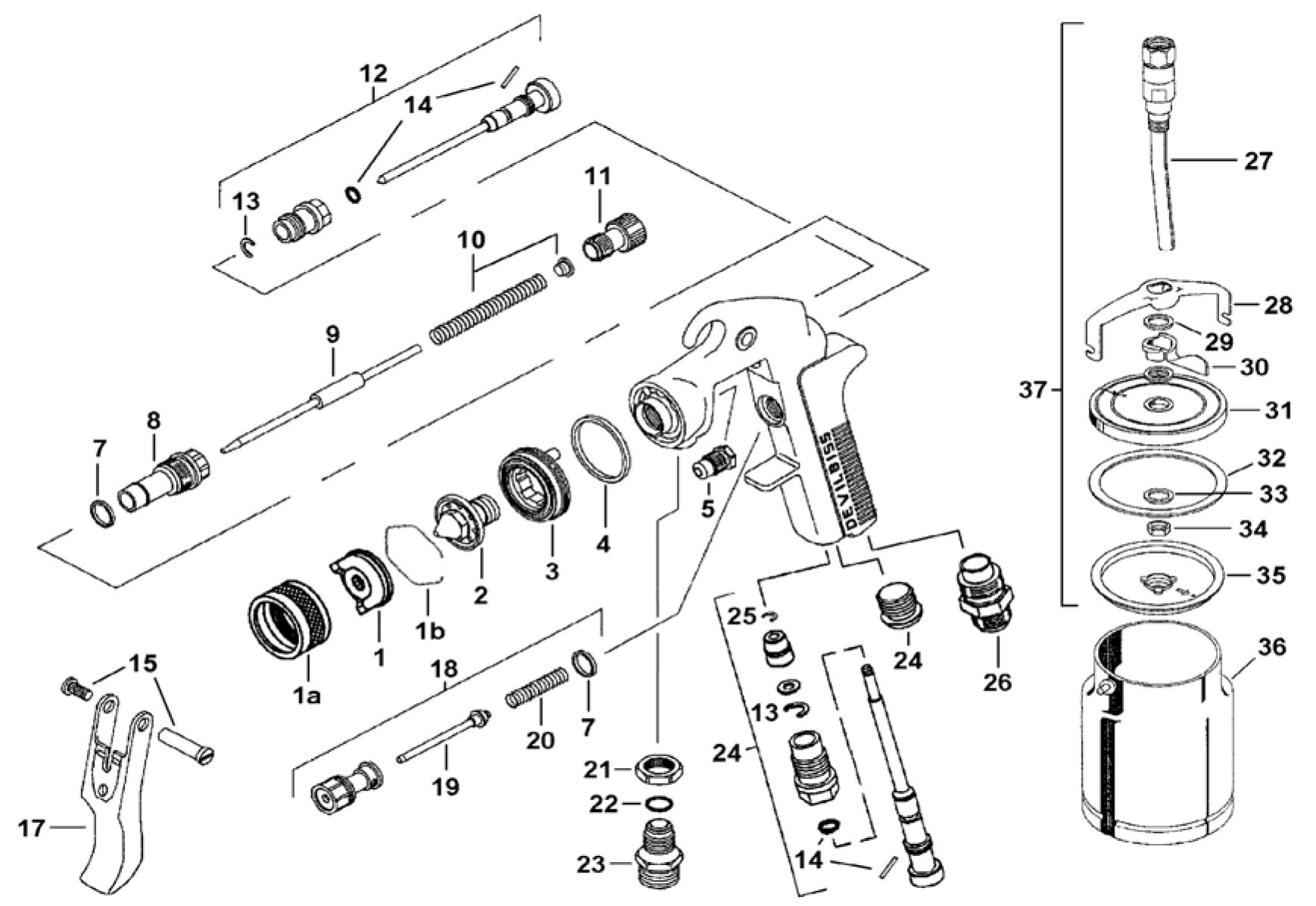

JGA HD |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1 |
AV-4239-186 |
Air cap with retaining ring |
| 1a |
MBC-368 |
Retaining ring metal |
|
MSG-9 |
Retaining ring aluminium |
| 1b |
JGA-156-K5 |
Spring clip (Pack of 5) |
| 2 |
AV-645-FX |
Nozzle 1.1 mm |
|
AV-651-FX |
Nozzle 1.1 mm with plastic insert |
| 3 |
JDG-402-K |
Air distributing ring |
| 4 |
GTI-33-K5 |
Seal (Pack of 5) (not applicable if using MSG-410) |
| 5 |
GTI-445-K2 |
Needle packing (Pack of 2) |
| 7 |
JGS-72-K10 |
Seal (Pack of 10) |
| 8 |
JGA-17 |
Needle cylinder |
| 9 |
JGA-421-FX-K |
Needle |
| 10 |
GTI-409-K5 |
Spring with pad (Pack of 5) |
| 11 |
GTI-414-K |
Needle adjusting screw |
| 12 |
GTI-405-K |
Jet regulating valve |
| 13 |
SST-8434-K5 |
Snap ring (Pack of 5) |
| 14 |
GTI-428-K5 |
Seal and pin (Pack of 5) |
| 15 |
GTI-408-K5 |
Pin and screw (Pack of 5) |
| 17 |
GTI-108 |
Trigger |
| 18 |
JGK-449-K |
Air valve, compl. |
| 19 |
JGS-431-1 |
Air valve cone |
| 20 |
JGV-262-K5 |
Spring (Pack of 5) |
| 21 |
JGA-51-K5 |
Lock nut (Pack of 5) |
| 22 |
23165-001-K10 |
Seal (Pack of 10) |
| 23 |
JGA-159-K |
Material inlet nipple 3/8" |
| Ref. |
Part no. |
Description |
| 24 |
GTI-415-K |
Air fine regulating valve |
|
JGHV-59 |
Blanking plug |
| 25 |
25746-007-K5 |
Snap ring (Pack of 5) |
| 26 |
JGA-158 |
Air inlet nipple 1/4" |
| 27 |
KR-4001-B |
Intake tube R 3/8" |
| 28 |
KR-77-1 |
Bracket |
| 29 |
|
Disc (Pack of 5) |
| 30 |
KR-445-1 |
Clamping lever with seal |
| 31 |
KR-78 |
Cover |
| 32 |
KR-11-K3 |
Seal (Pack of 3) |
| 33 |
KR-40-K5 |
Disc (Pack of 5) |
| 34 |
|
Nut (Pack of 5) |
| 35 |
KR-115-K5 |
Drip protection (Pack of 5) |
| 36 |
KR-466-K |
Cup 1 l |
| 37 |
KR-4001-B |
Cover, attached, R 3/8" |
|
KR-483-K10 |
Fine filter (Pack of 10) |
|
KR-110-K3 |
Plastic insert (Pack of 3) |
|
| |
| |
| |
